D49ED22N1B, Telescopic cooker hood

D49ED22N1B, Telescopic cooker hood

This item is no longer available

Enquire Now

ColourStainless Steel
Energy RatingA
Boost position air extraction412 m³/h
Boost position output recirculating353 m³/h
Colour bodySilver metallic
Colour chimneynoData
Communication Technology usednoData
Construction typeBuilt-in
Depth of the packed product360 mm
Depth of the product290 mm
Diameter of air outlet120 / 150 mm
Eco labelnoData
Electrical connection rating76 W
Energy efficiency classA
Gross weight12.5 kg
Height of the packed product310 mm
Height of the productnoData mm
Installation typeBuilt-in
Length of electrical supply cord175.0 cm
Net weight10.2 kg
Noise level63 dB re 1 pW
Noise level with boost position70 dB re 1 pW
Number of lights3
Number of speed settings; boost option availability3-stages + intensive setting
Product Image14559324_D49ED22N1B_STP_def.jpg
Total annual energy consumption22.2 kWh/year
USP information 1Efficient Drive Motor – Quiet and energy-efficient hood motor for a calmer kitchen.
USP information 2Intensive speed setting: increases the extraction rate when the steam gets intense
USP information 3LED Lighting – Clear illumination while you cook.
USP information 4Automatic After-running – ventilation continues for several minutes after you turn it off
USP text indicating a statement of the main highlight or highlights of the product.Telescopic hood: designed to provide powerful extraction without impacting on your kitchen space or design. These hoods pull out from underneath a cabinet when required for a streamlined kitchen.
Width of the packed product940 mm
Width of the product898 mm
Manufacturer Guarantee2 years
EAN4242004251163

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Benefits

Details

Features

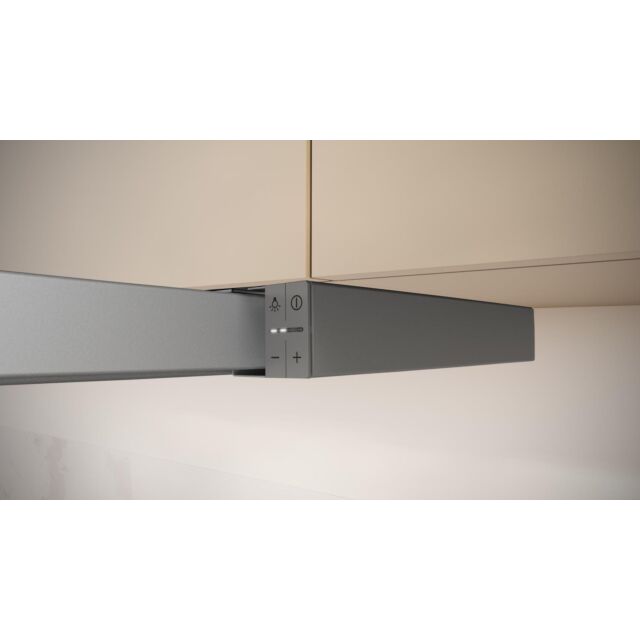

Electronic controls via Soft touch control
3 speeds plus intensive
3 x 1,5W LED
Efficient BLDC technology
Automatic intensive revert (6mins)
Automatic after running (Automatic after running (10 minutes))

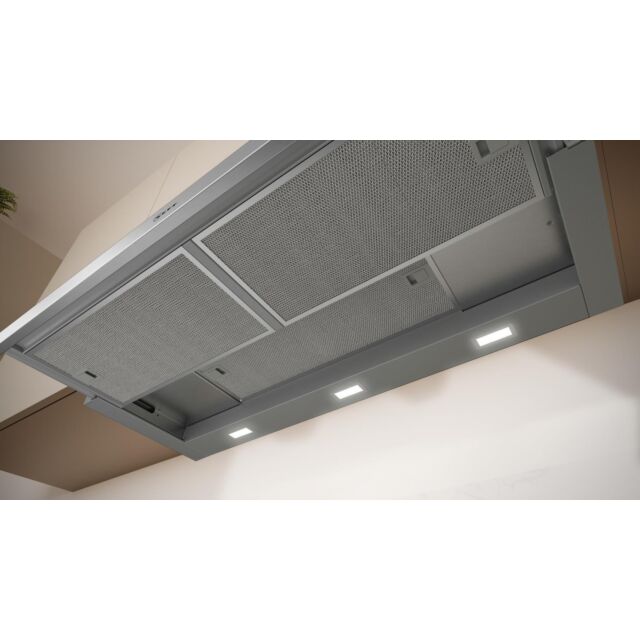

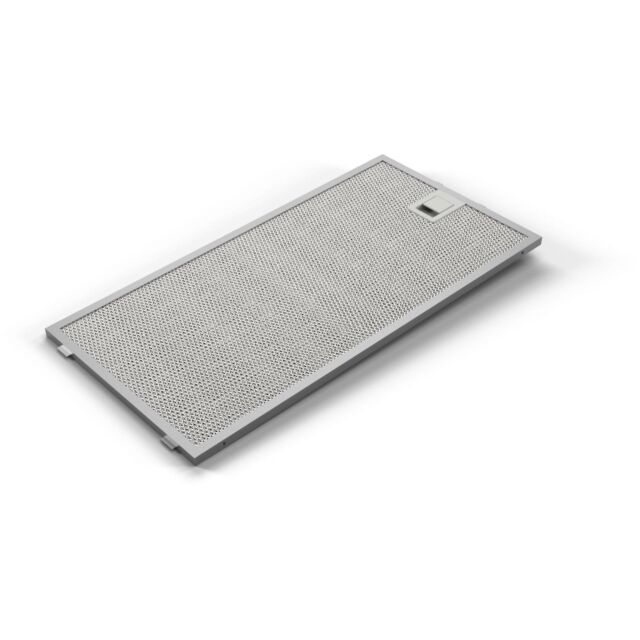

3 metal grease filter cassettes

Design

90 cm wide
Silver metallic grey
Handle strip specification: stainless steel with logo
Filter cover stainless steel, perforated and dishwasher safe

Performance

Suitable for ducted extraction and recirculation
For recirculated extraction recirculating kit (accessory) needed
Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
Extraction rate according to EN 61591 ø 15 cm:
max. Normal use266m³/h
Intensive412 m³/h
Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 63 dB(A) re 1 pW
Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use:63dB(A) re 1 pW
Intensive:70 dB(A) re 1 pW
Colour Temperature: 3500 K
Light Intensity: 355 lux
Average Energy Consumption: 22.2 kWh/year*
Power rating: 76 W
Blower Efficiency Class: B*
Lighting Efficiency Class: A*
Grease Filtering Efficiency Class: C*
